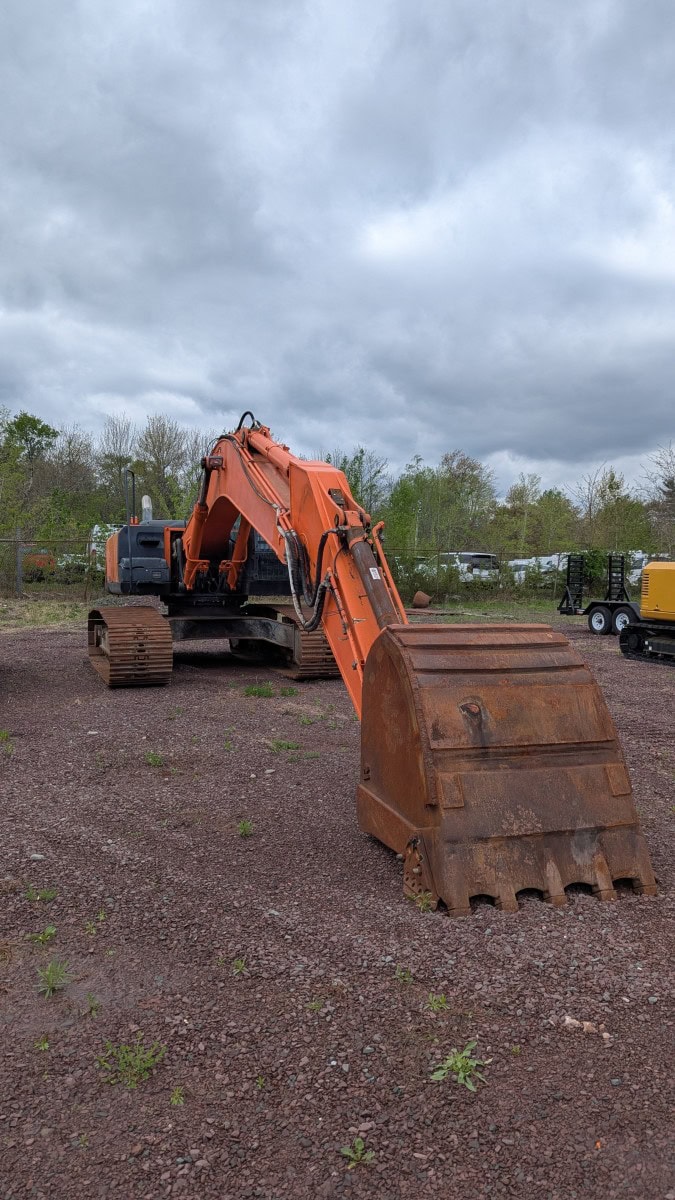

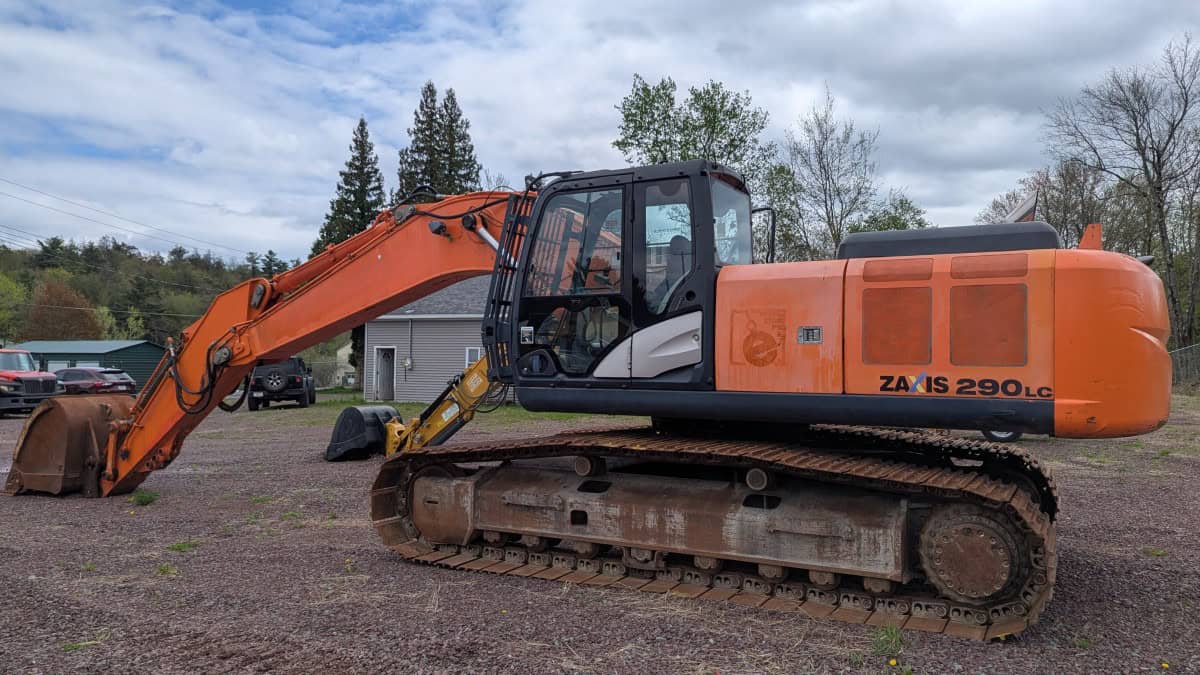

Hitachi ZX290LC-5N 31-Ton Hydraulic Excavator
Powerful, stable, and built for tough excavation, the Hitachi ZX290LC-5N delivers strong hydraulics, long carriage stability, and a fuel-efficient engine. Ideal for deep digging, trenching, and lifting on heavy-duty job sites.
Purchase Price: $70,000
Rental Price:
- Per Day: $1,300
- Per Week: $3,900
- Per Month: Call for Pricing
Hire with Skilled Operator: Contact us for project-specific quotes.
Description
The Hitachi ZX290LC-5N is a high-performance 31-ton class hydraulic excavator designed to meet the rigorous demands of construction and excavation. It’s powered by an efficient Isuzu AH-4HK1X (or AL-4HK1X) diesel engine delivering 188 hp (140 kW) at 2,100 rpm.
This model features the advanced TRIAS hydraulic system, which includes three variable-displacement axial piston pumps , contributing to higher productivity and significant fuel savings. With an operating weight of approximately 63,273 lbs (28,700 kg), the ZX290LC-5N offers impressive stability and power. It boasts a maximum digging depth of 25 ft 10 in (7.88 m) with a 3.75m arm, and a maximum reach at ground level of 36 ft 5 in (11.10 m).
The strengthened boom and arm, along with a reinforced undercarriage, ensure exceptional durability in tough working environments. The cab is ROPS-compliant and pressurized , providing a comfortable operator’s station with auto climate control and a multi-function LCD monitor. This excavator is equipped with durable steel tracks and is well-suited for heavy excavation, trenching, loading, and large-scale site development.
Key Features:
- Model: Hitachi ZX290LC-5N Hydraulic Excavator
- Class: 31-Ton Operating Class
- Engine: Isuzu AH-4HK1X (or AL-4HK1X) Diesel
- Engine Power: 188 hp (140 kW) at 2,100 rpm
- Operating Weight: Approx. 63,273 lbs (28,700 kg)
- Hydraulic System: TRIAS System with 3 variable displacement axial piston pumps (Max flow 2×236 L/min + 1×210 L/min)
- Maximum Digging Depth: 25 ft 10 in (7.88 m) (with 3.75m arm)
- Maximum Reach at Ground Level: 36 ft 5 in (11.10 m) (with 3.75m arm)
- Travel Speed: Low: 0 to 3.3 km/h (2.1 mph); High: 0 to 5.2 km/h (3.2 mph)
- Swing Speed: 10.3 rpm
- Swing Torque: 90.5 kNm
- Tracks: Steel Tracks (typically 800mm / 32 in wide triple semi-grousers available)

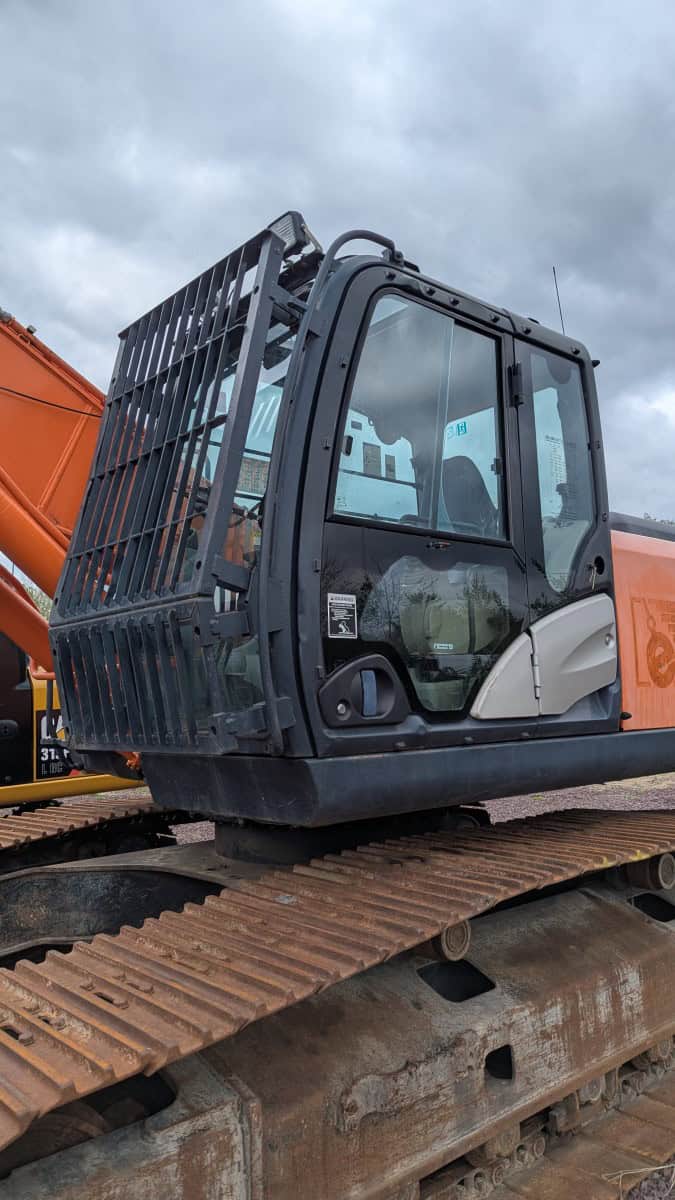

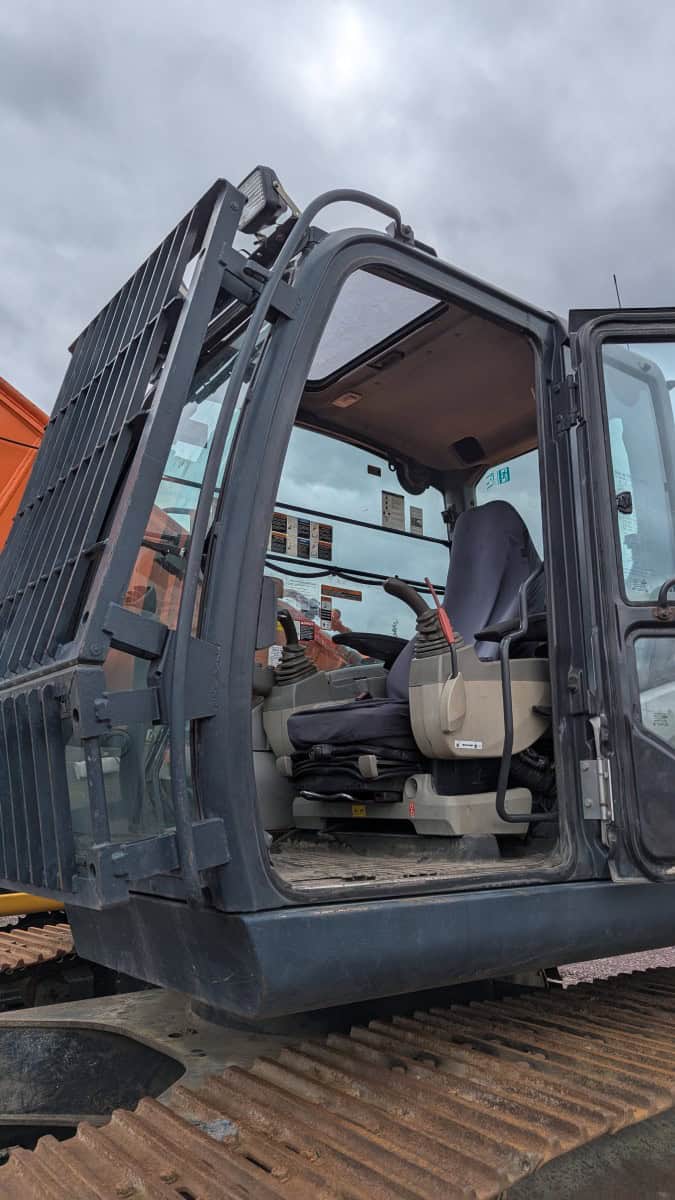

- Cab: ROPS-compliant, pressurized with auto climate control and LCD monitor
- Bucket Capacity: Range of 1.00-1.62 m³ (1.31-2.12 cu. yd.) ISO heaped (1.34 m³ / 1.75 cu. yd. Heavy-Duty High-Capacity bucket standard for specs)
- Applications: Heavy excavation, trenching, site preparation, loading, demolition.
- Availability: Rent, buy, or hire with operator in Monticello, NY.
Additional information
| Sales type: | Rent, Hire with skilled operator, Purchase |
|---|
